Pre-applied waterproofing also referred to as blindside waterproofing, is installed overtop of shoring substrates, creating a strong mechanical bond with the concrete as it cures to form an integral waterproof barrier. These systems are typically used in below-grade applications such as raft slabs, blindside walls, and tunnels where external access is limited after construction. By forming a continuous seal that prevents water migration, pre-applied waterproofing ensures long-lasting protection for structures exposed to hydrostatic pressure or challenging site conditions.

Lagging Wall

Natura HDPro™

SpraySeal™ NS-F300+GE

Foundation Wall

Raft Slab

Protection Slab

Mud Slab

Pre-Applied Waterproofing

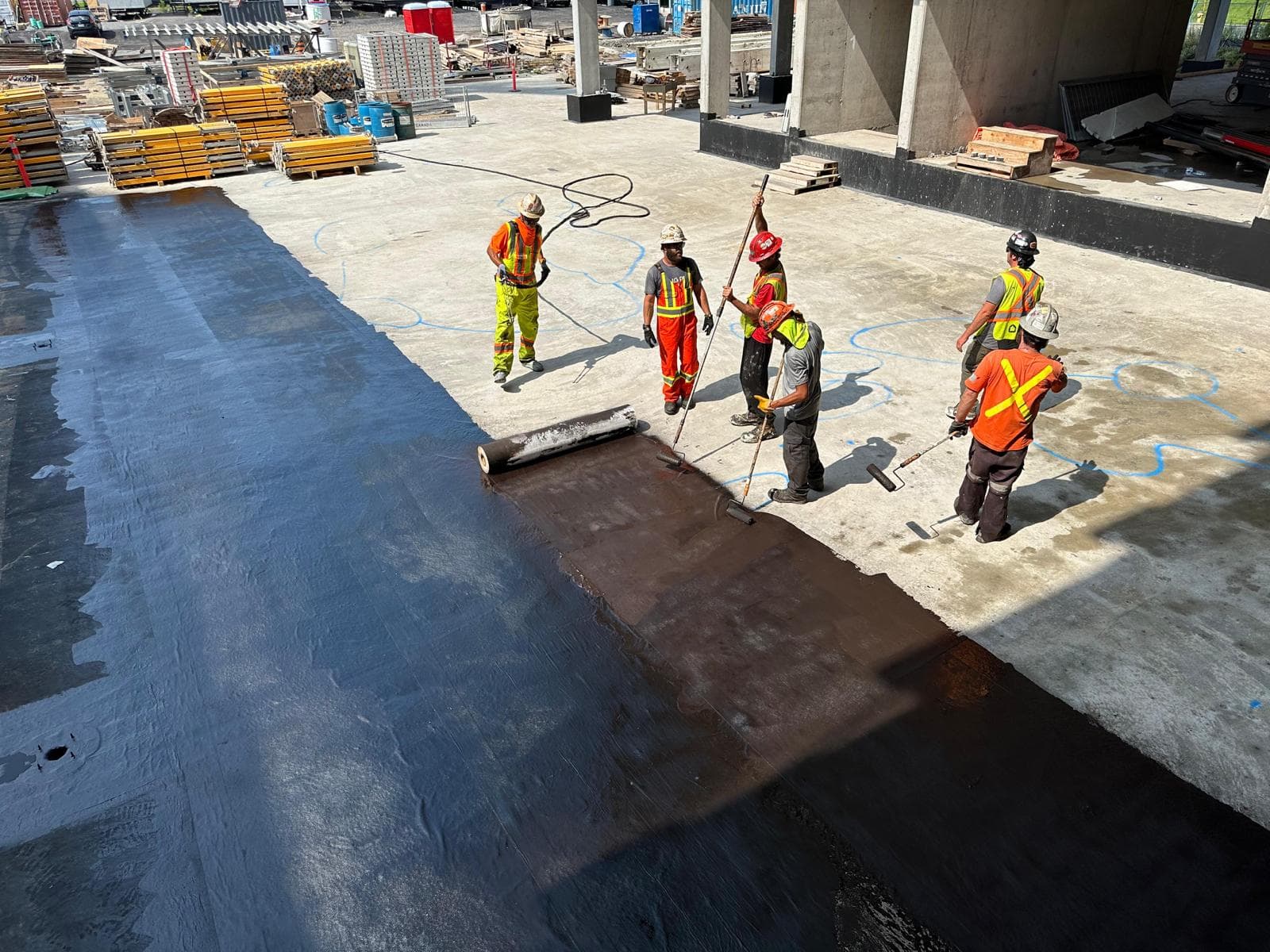

Plaza deck waterproofing systems are intended to protect elevated structural slabs, often used as in split-slab or covered membrane applications. These systems create a durable, continuous membrane, designed to prevent water infiltration into occupied spaces below while accommodating structural movement and drainage requirements. Engineered to withstand overburden loads and varying environmental conditions, podium deck waterproofing supports long-term performance, structural integrity, and reliable protection.

Podium & Plaza Deck Waterproofing

Concrete

SpraySeal P800 HD / SpraySeal P800 HDP

GeotexSeal B700 RF

SpraySeal P800 HDP / SpraySeal P800 HD

RollnSeal B700 HD

Soil

SpraySeal&trade; P800 HDP is a proprietary Polymerized Modified Asphalt Emulsion (PMAE) technology formulated from organic compounds. This elastomeric waterproofing coating is a post blended and instant-setting spray-applied to form a flexible, seamless, non-permeable waterproofing membrane.

SPRAYSEAL P800 HDP

SpraySeal&trade; P800 HD is a proprietary Polymerized Modified Asphalt Emulsion (PMAE) technology formulated from organic compounds. This elastomeric waterproofing coating is a post blended and instant-setting spray-applied to form a flexible, seamless, non-permeable waterproofing membrane.

SPRAYSEAL P800 HD

RollnSeal B700 HD is a 2-dimensional, HSPE (high strength Polyethylene) pre-applied waterproofing bonded system carrier sheet designed for heavy duty vertical and horizontal deep substructure applications. It is specially formulated using 100% virgin resin and high strength polypropylene (PP) geotextile. The select blend contains antioxidants &nbsp;that provides a high environmental stress crack resistance to alkalis and acids found in the soil and ensures a smooth, superior quality membrane. Our special extrusion process utilize low heat and low shear to prevent heat degradation in the finished product.

ROLLNSEAL B700 HD

GeotexSeal&trade; B700 MF is composed of continuous synthetic polyester fibers bonded through a mechanical needle-punch process. It is especially recommended for reinforcing liquid waterproofing membranes. This specialized fabric enhances the performance of liquid-applied membranes by improving their toughness, puncture resistance, elongation capacity, and crack-bridging ability.

GEOTEXSEAL B700 MF

BrushSeal&trade; M600 BR is a single component proprietary Polymerized Modified Asphalt Emulsion (PMAE) Technology formulated from organic compounds. This elastomeric (brush or roller) applied waterproofing coating is highly versatile and can be used for a variety of waterproofing and detailing applications, both indoors and outdoors.

BRUSHSEAL M600 BR

A continuous waterproofing membrane that protects elevated podium and plaza slabs and the occupied spaces below, while allowing for movement and drainage.

Podium & Plaza Deck Waterproofing

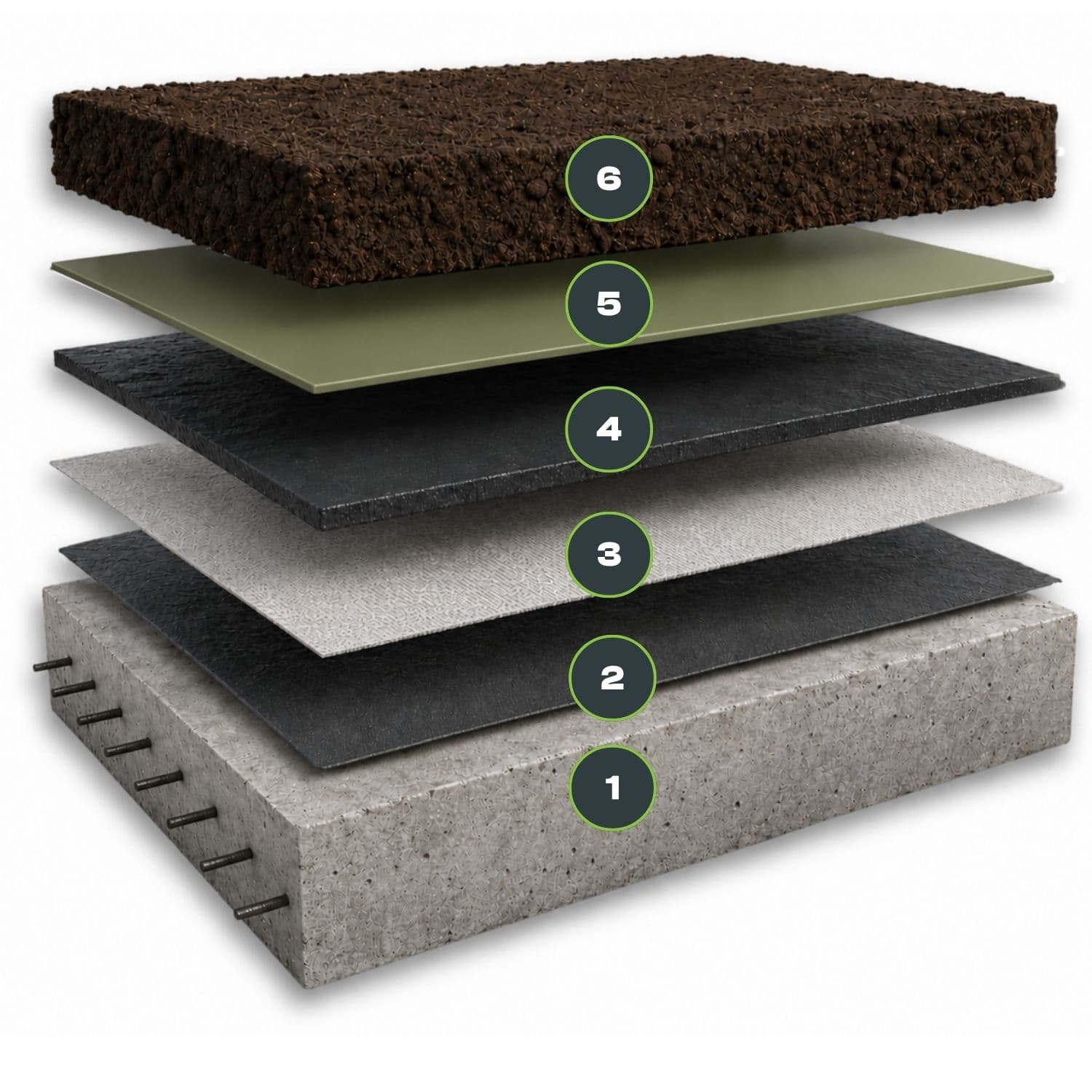

Specification Layers
